| [Manufacturer] | Arrow Shark |
| [Product Version] | Smart Billet Rail- Cat Electric |
| [Product Weight] | 1455 Grams |

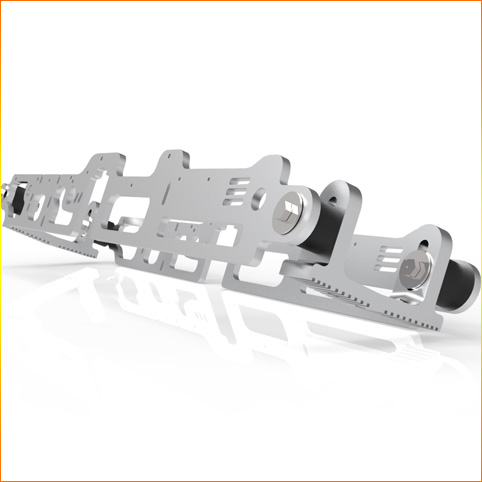

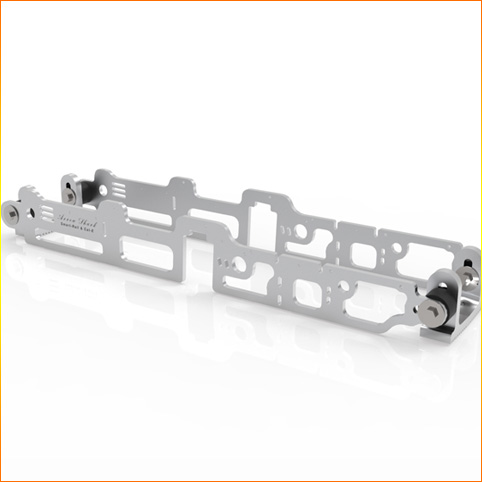

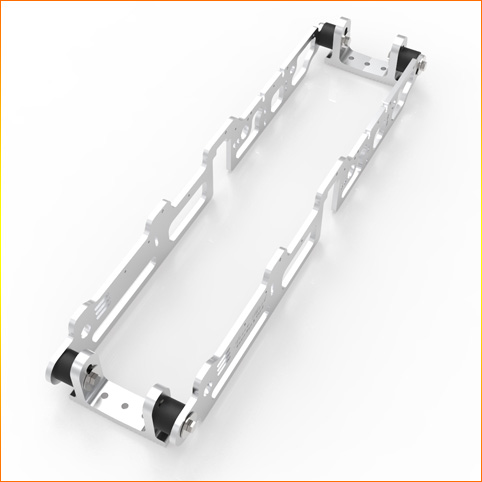

| [Brief Description] | The Smart Billet Rail Cat-E version is the brother version of the smart rail cat30, which we released earlier. The Cat-E version is specially designed to work with electric power set up catamaran hulls from 55” to 65”. The rails have pre-cut the clearance space to work seamlessly with our WGT series catamaran gear box. This enables you to implement a single super power electric motor to control twin counter rotation drive setups, offering identically RPM output for the optimum RC boat performance.

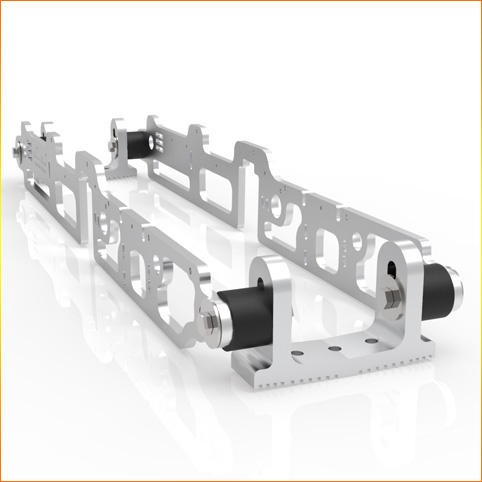

The billet rails were CNC machined from T6 aluminum with precisely compat structure and hollow design which reduces the weight to its limit. The rail base has a creative design of reinforcement grooves for storing the Epoxy AB glue that efficiently helps stick the billet bases to the bottom of the hull firmly for stable operation. There are four heavy duty isolation rubbers in a diameter of 30mm line up between the billet rails and billet bases to absorb any leftover vibrations from the engine before it transfers to the hull. This is done to improve the positive power conveyed, reaching the superlative performance. The threads and adjusting slots in the rails are precisely pre-drilled for accurate hardware and electric motor installation. The Cat-E billet rail will be able to hold an electric motor with lengths from 94mm to 114mm with our E56 series motor mount available on our website. The billet rails are fully adjustable in both horizontal and vertical directions for a convenient setting and adjusting of the center of gravity of your boat. The exclusive function of the smart billet rail enables you to move the complete rails with all hardware installed inside and outside the hull for hassle-free maintenance. The traditional wooden engine rail cannot be compared with the user friendly design of the billet rails in both the rigidity of the material and the function. |

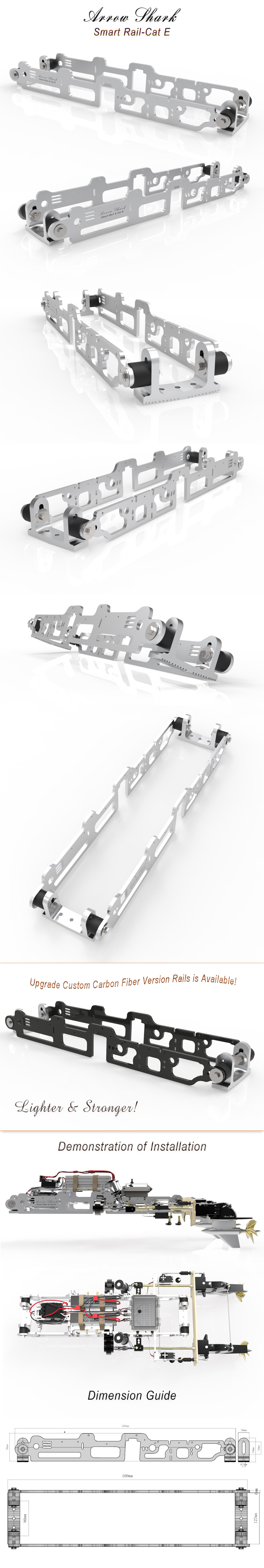

| [Product Dimension] | Please check the dimension picture above for the detail. |
