| [Brief Description] | This is our 2023 upgraded RX55-The Pilot with Ultra-Jet sport edition electric setup, we offer both ARTR and RTR versions for this sports package.
The ARTR version will require a 56-series brushless motor with a 300A marine ESC, and 8S -12S LIPO batteries. The RTR package comes with everything you need except the LIPO batteries with XT90 connector, this ultra-jet sport package comes with an exclusive design station pad not only to organize all the electronic components very precisely in their position, but also allows you to adjust the CG position when needed, and easy to install. The cooling control box has dual functions switch, click the switch to the “on” side, and it is manual control, the pump, and the air cooling fans will start to function immediately, click the switch to the “off” side and plug the signal wire into your receiver, then, it will become remote control, whichever receiver slot you plug the wire in, then, the cooling system will be controlled by that channel, this means even your RC system is an older type of two-channel version, you can still use the pump by its “manual control” function. Our X56114L cooperating with HV300A marine ESC produce max 14KW power to keep your boat flying on the water at all times, the 2023 released E2X-Diaphragm Cooling Pump will make sure both brushless motor and ESC get proper cooling at all time during operation. This sports edition of the Ultra-jet sport package setup will provide precise handling, showing you an unparalleled sense of control experience and enjoyment of speed and furious at all times! |
| [Purchase Info] | This Product is custom build to order, before you place the order, please contact us first for the detail of stock availability, shipping cost to your country, and the waiting time, we only take payment via bank wire transfer for all custom orders, we will email you our bank account information after you confirm the order, and your order will only be processed after the full payment is received. |
| [About Radio System] | Please note that all of the Arrow Shark 2020 RTR boats or Kits don’t come with transmitter and receiver, you will need to provide your own prefer radio system. |
| [Electric Motor] | (Not Included)- Recommend to use 5694-56114 Brushless Motor |
| [ESC] | (Not Included)- Recommend to use water cool 200A -300A |
| [Battery ] | (Not Included)- Recommend to use 8S-12S |
| [Kit Version] | Ultra-Jet Electric ARTR Package |

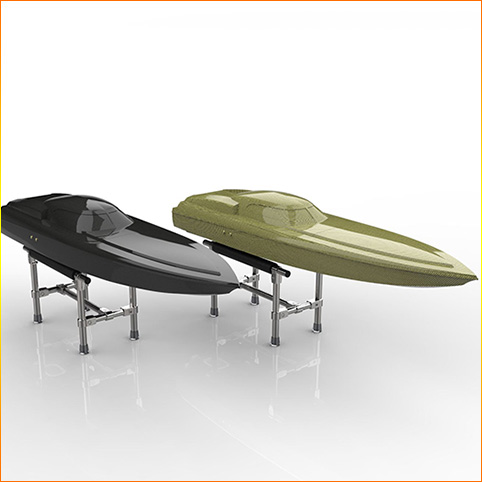

| [Hull] | The Pilot RX55 Hull ( Black Carbon Fiber or Yellow Kevlar) |

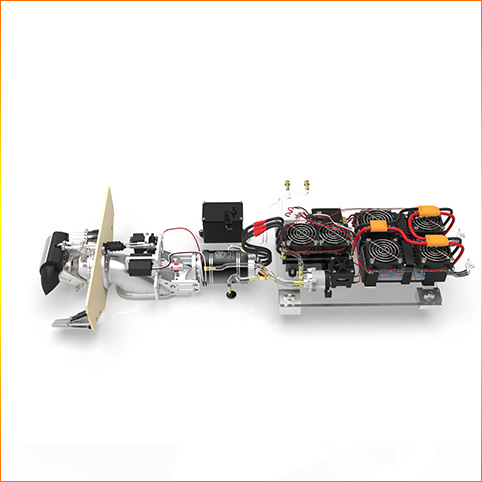

| [Drive System] | Billet Ultra-Jet Kit (Electric Version) |
| [Drive Accessories] | Billet Battery Cooling Pad
Drive Shaft |
| [Radio Box & Parts] | Custom Receiver mount
3mm steel push-rods for steering and draw back cover. Billet Servo Arm 20KG Metal Gear Steering Servo x1 20KG Metal Gear Draw Back Control Servo x1 |
| [Building Accessories] | Water Proof Seal Tape x1 roll,
Bilge Water Pick Up x4, Water Outlet x4 Water Tube x5 Meter, All Installation Bolts&Nuts |
| [Boat Stand] | Heavy Duty Mono Hull Stand |
| [Product Dimension] | Please check drawing picture above for the detail. |
| [Packing Dimension] | Length: 1600 Width: 435mm High: 320mm |
| [Product Weight] | Approximate 11KG |
| [Shipping Weight] | 45KG (This weight is converted from Packing Dimension) |
