| [Manufacturer] | Arrow Shark |
| [Product Version] | The Twin-T-Bar H2V |
| [Product Weight] | 175 Grams |

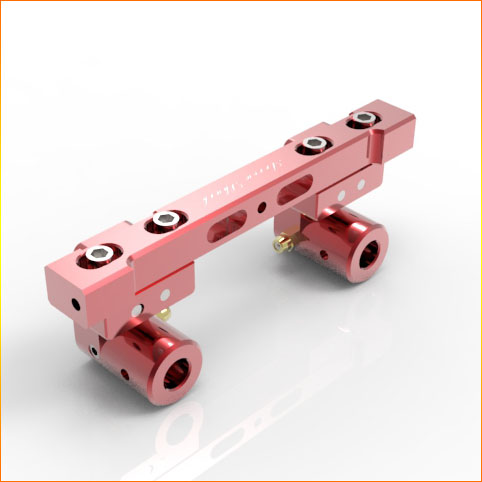

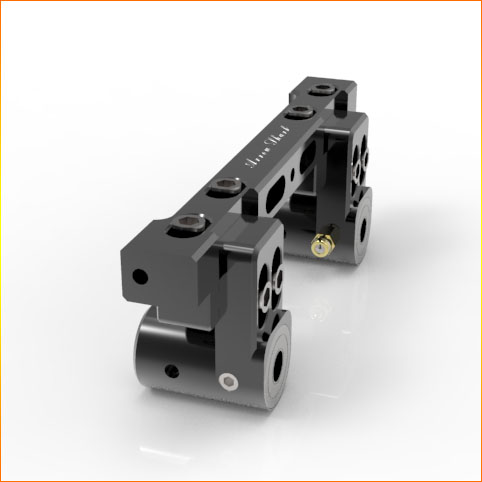

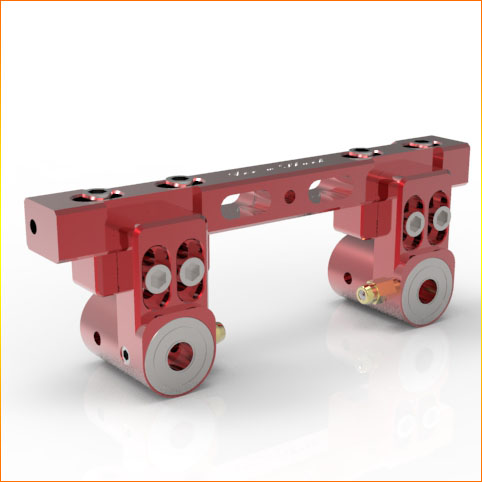

| [Brief Description] | The Twin H2V T-Bar is specially developed to line up with the GTM and GX series gear box we have available, as there has no any specified products in the market to secure the twin set up stuffing tubes that could perfectly align to the drive shaft outlet of the gear box, therefore, the H2V T-bar will be the excellent solution to this application.

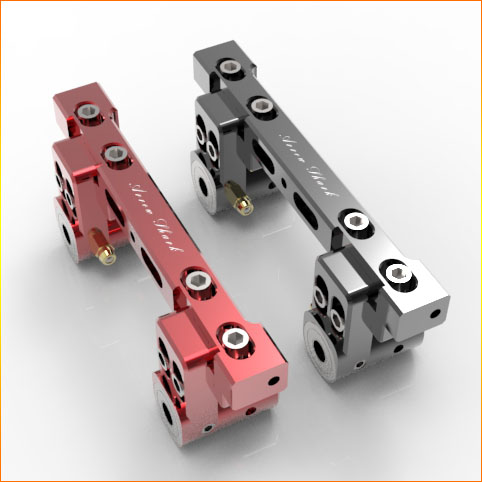

The H2V T-Bar was CNC engineering construction from top quality T6 aluminum and anodized in both Brilliant Red and Jet Black to match the colors of other billet products we have available such as engine and scale drives, it has exclusive deign of detachable individual adjustment block that has built-in front bearing for the ultra-smooth flex shaft performance and it also equips with a 9.1mm diameter receptacles with secure nuts to easily accept and hold firmly a 9mm stuffing tube in exactly the right place for the flex shaft to slip precisely into the output shaft collets from the gear box, There were two sets of bolts on each adjusting block allow you to final adjust both vertical and horizontal of the stuffing tube position separately in order to perfectly line up with the both output shaft collet from the gear box, as the misalignment causes heat, wear and loss of performance, and risks premature failure of the flex shaft. The integral grease nipple on each adjusting block for convenience injecting the grease to provide for ongoing lubrication of your flex shaft when running, contributing further to reliability and efficient operation. We also have innovative design of detachable oil-cup-Lubricator-X that works seamlessly with the H2V T-bar and it is available for sale separately in our website. |
| [Product Dimension] | Please check the dimension picture above for the detail. |
