| [Manufacturer] | Arrow Shark |
| [Order Information] | The Hi-Val Package series will be sold as custom build to order, therefore, we only accept the payment via bank wire transfer for these package orders, and we do not accept the return or exchanges for the custom orders because the international express shipping cost for the packages are very expensive, all the products in the package will be subjected to strict quality control and well packing before shipping, however, if in any case there is any part gets damage during the transportation, we will send the free replacements to make the product works, and we do offer worldwide free shipping for the Hi-Val Package series orders and replacement parts.
|
| [Kit Version] | Mystric X30-Deluxe Package |
| [Brief Description] | Hi-Val Packages represents the Arrow Shark's latest RC Marine technology and the top line hardware products that we have available, these luxury hardware packages were carefully selected to suit various gas power RC Boat applications, it offers many options in both budget and performance to meet your request, every single product in the package shows innovative design from Arrow Shark, and every detail reveals how much attention and time we have dedicated to make them remarkable! They are not only delivers the most stunning appearance of mechanical engineering to enhance the value of the RC boat projects that you are building, it also offers the most clean and tidy installation available to-date in the RC boat industry.

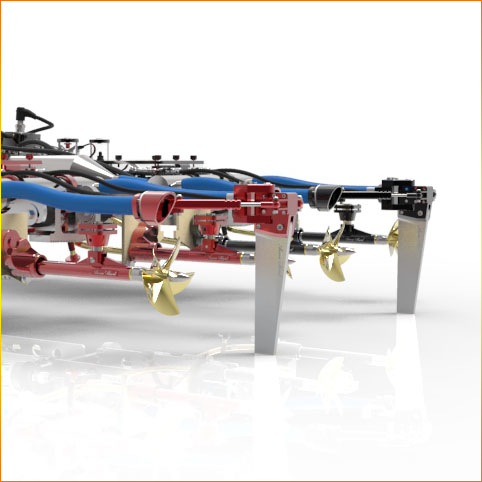

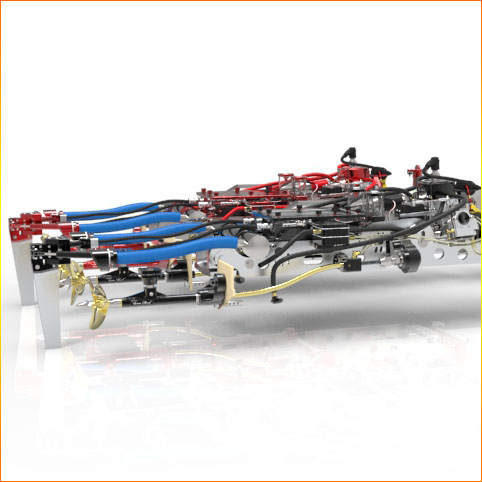

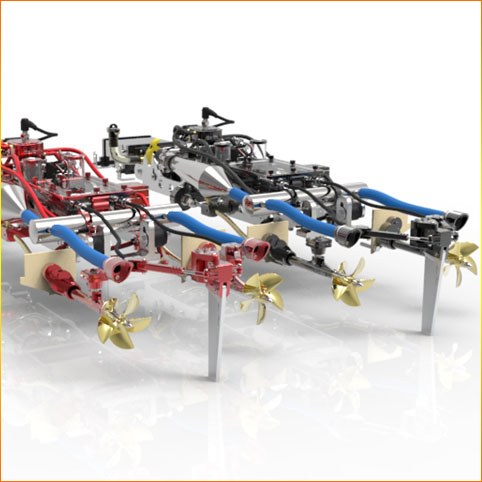

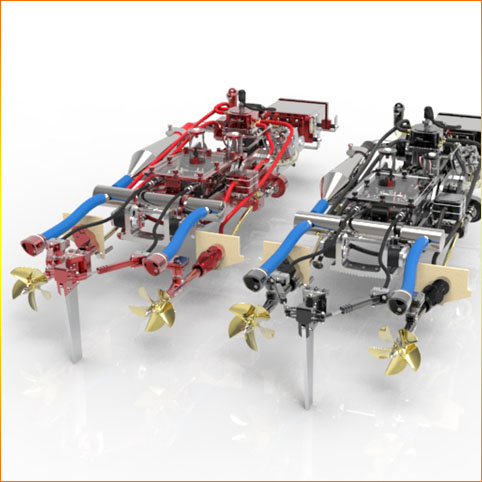

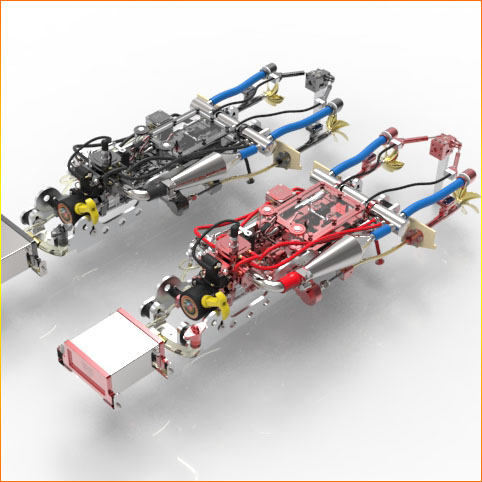

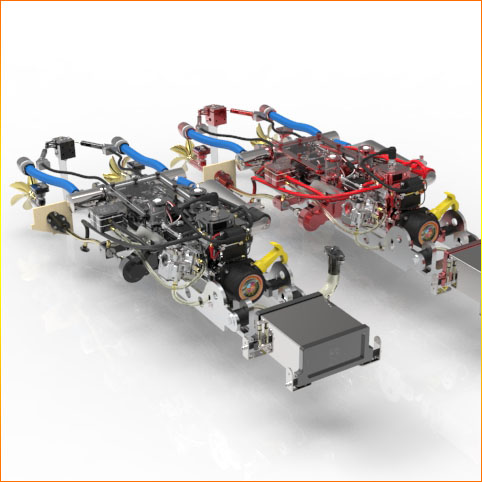

The Mystic X30-deluxe is well selected hardware package for Mystic type catamaran applications, it equips the top hardware line that Arrow Shark has available up-to-date, such as X-Partner Scale Drive combo, X-30 marine engine, custom exhaust system, smart billet gas tank or smart billet radio box, especially the WGT 2C gear box which was specially designed to work for the catamaran hull applications, to set up one engine with counter-rotating twin drives in a scale catamaran hull has been a long-standing challenge and not yet been solved, most twin drive set up on catamaran hull goes with two engine side by side, but, that set up will not be able to control the RPM identically from each engine, and this innovative design of WGT 2C gear box from Arrow Shark is the solution key to solve this technical issue perfectly! The gear box was squarely machined from T6 aluminum for the rigidity and durable performance, the gears inside the box was manufactured with technology of compacting process of powder metallurgy the same technology used for gears in full size automotive transmissions, and gears were supported by total 16 heavy-duty ball bearings via the drive shafts, this results in ultra smooth operation and enable to handle any gas or electric motor over 15HP with up to 30000RPM+ without any issue. The package also includes the most revolutionary design product from Arrow Shark-The fully adjustable smart billet engine rail- which was constructed and machined from T6 aluminum, the rails has compact design with precisely position of thread holes prepared for each hardware to be accurate installed, the exclusive design of the smart billet rail enable you to move the complete rails with all hardware installed in and out of the hull for adjustment or maintenance without hassle, whilst offers the convenience for re-setting and adjusting the CG position inside the hull. The both rigidity of material and function of user-friendly design of the billet engine rail are the traditional wooden engine rail couldn't be contrasted with. The Mystic X-30 Deluxe package will suit for any Mystic type hull from 58 inches up to 65 Inches and delivers exceptional sport performance and the stunning sense of reality appearance for any projects that it associated with! please check the information above for the dimension detail of the package and make sure it works for your hull before placing the order. |
| [Package Contents] | Everything shows in the picture will include in the package. |
| [Transom Plate] | We offer custom laser cut transom plate without additional charge, as every boat's transom shape and size are different, so, please send us the CAD drawing of your boat transom dimension, so, we can make it and ship it with your order. |
| [Engine Rail] | Billet Smart Engine Rail Kit- Cat -30 Version |
| [Engine] | X-30 Marine Engine |
| [Exhaust System] | Mini Devil SS Pipe Kit
90 Degree Header DES-2X Muffler Kit & Connection Tubes Billet Exhaust Outlet Kit |
| [Gear Box] | WGT-2C Gear Box |
| [Drive System] | Mystic S Drive- X- Partner |
| [Propeller] | AS7818/5 Mod prop Left & Right |
| [Drive Accessories] | X-Pump kit with connection tubes
Lubricator-X Oil Cup x2 CST-2H Tube Holder Set Stuffing Tube x2 (each 400mm in length) Flexible X600L x1 (600mm in length) Flexible X600Rx1 (600mm in length) |
| [Gas Tank] | Mirror 950 Gas Tank Kit & CNC Refueling port |
| [Radio Box & Parts] | Smart Box-S
Metal Wire Connections Soft Cable Adaptor CNC Servo Arm Tie-bar Steering Cable & Sleeve 20KG Metal Gear Steering Servo x2 15KG Metal Gear Steering Servo x1 |
| [Building Accessories] | Hatch Latch x 1 set, Bilge Water Pick Up x2,
Billet Water Drainer x2, Water Tube x5 Meter Gas Tube 1 Meter, Hull Air Outlet Plates x4, All Installation Bolts&Nuts. |
| [Product Dimension] | Please check the dimension picture above for the detail. |
| [Product Weight] | 10KG |
