[Manufacturer] | Arrow Shark |
[Weight] | 390 Grams |

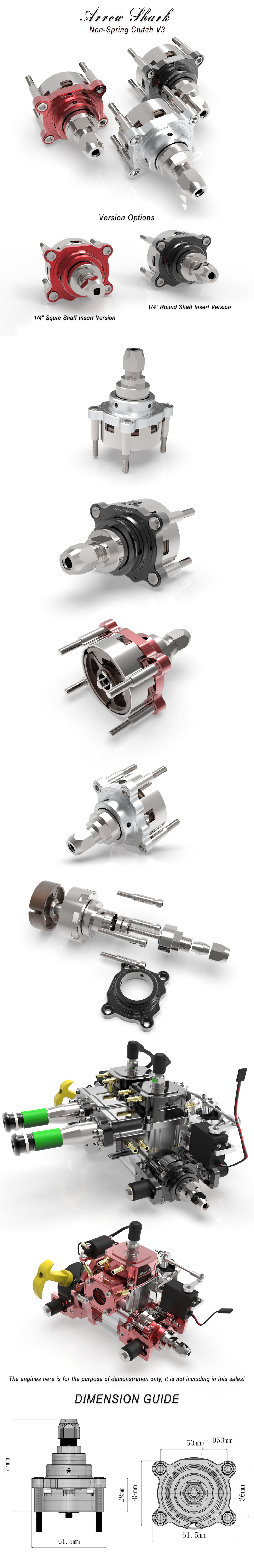

[Dimension] | Please check the dimension picture above for the detail |

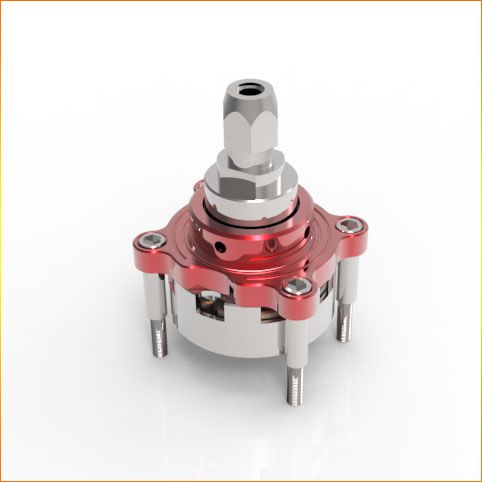

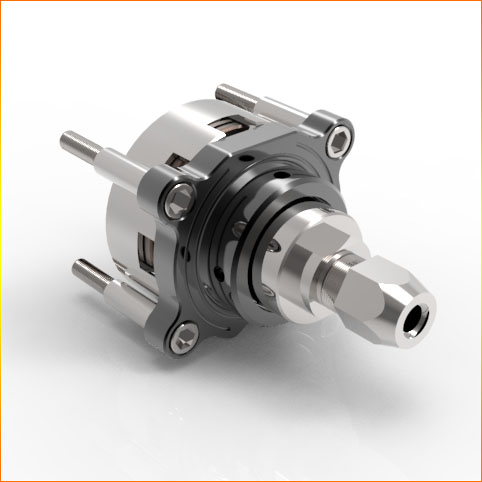

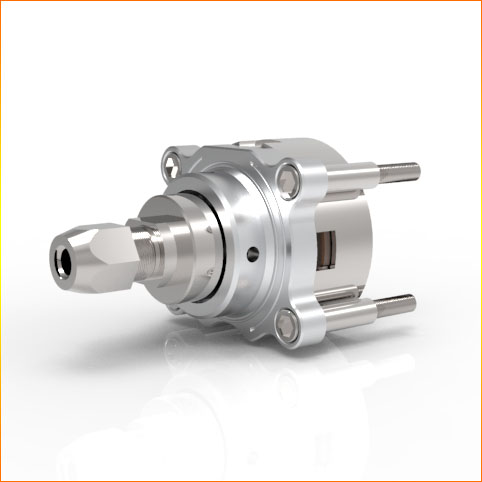

[Brief Description] | We have re-designed about everything in our V3 clutch system compare to V2 to make it performance even better! First of all, the V3 clutch shoe has been totally re-design from two engaged points to three engage points which allow better grabbing with less slipping, as well the clutch shoe has been lightened about 60 grams compare to the V2 clutch shoe. Moreover, The space between the clutch shoe to the clutch bell was reduced from 0.5mm to 0.3mm, so, the kit will get perfectly engaged in about 3500RPM -4000RPM without failure.

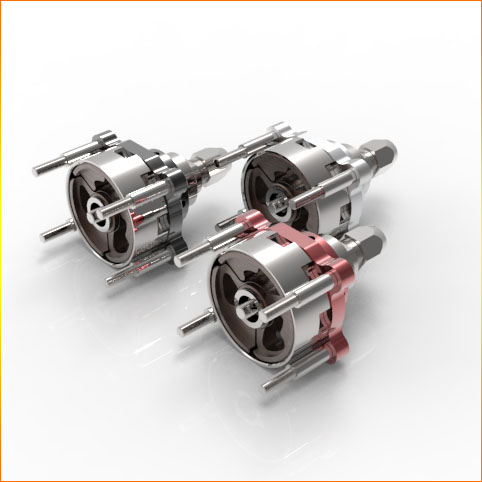

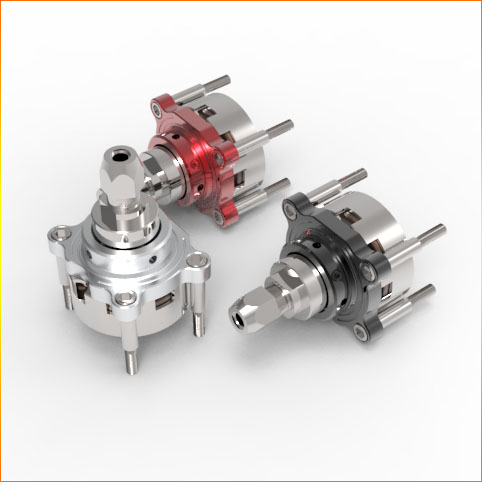

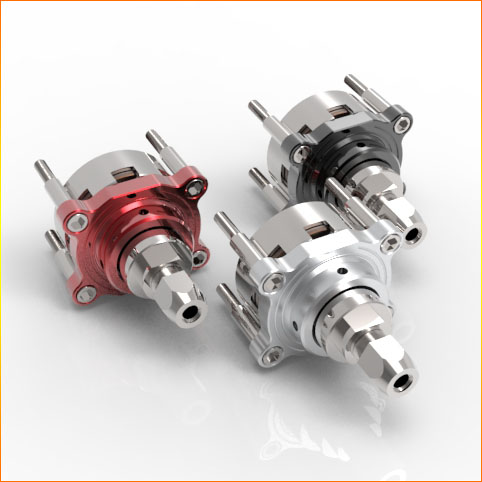

The new innovation design of clutch shoe will allow you to turn this V3 clutch system into counter-rotation kit for your counter-rotation engine with just one simple step by install the clutch shoe upside down! There is a heavy duty bearing installed the center of V3 clutch front plate, so, it equips with total three bearings to center the whole kit- two smaller bearings inside of the clutch bell to center the clutch shoe into clutch bell, and one large bearing inside the front CNC plate to center the whole kit perfectly without any adjustment. The new design of clutch bell is not only look better, was also design for easy installation, with only three simple steps for tighten the bolts, you will be able to install this V3 clutch to about any gas marine engine available in the market, such as Arrow Shark, Zenoah, RCMK, QD, CY, or clone engines at either stock or mod version, with or without engine mount, An integrated shaft collet shortens the overall length of the clutch system and allows the unit to be installed in smaller hulls where other brand clutch systems would be too long to fit. We offer three most popular colors for the V3 clutch, Red, Black, and silver, so, you can pick up the color you like to suit rest of the hardware in your project. The V3 clutch will be shipped to you complete assembled for your easy installation. |
100%
0%
0%
Most helpful comments(2)
V3. Clutch is so small and well built.
I will shop again.
Billet Clutch V3
Very well made, I recommend buy this clutch !!!
